I-LiFePO4 BMS: Indlela yokukhetha inkqubo yokulawula ibhetri efanelekileyo kwiphakheji yakho
Ukukhetha i-BMS engalunganga yenye yezona zinto zixhaphakileyo zokungasebenzi kakuhle kwangethuba kwiipakethe zebhetri zeLiFePO4 — kwaye yenye yezona ngxaki zilula ukuziphepha. Esi sikhokelo sikubonisa kanye oko kwenziwa yiLiFePO4 BMS, iinkcukacha ezibalulekileyo kwisicelo sakho, kunye nendlela yokuphepha iimpazamo zokufakela ezithumela uninzi lwamatikiti enkxaso kuthi.
Malunga neLiFePO4 BMS
I-LiFePO4 BMS (iNkqubo yoLawulo lweBhetri) yingqondo ye-elektroniki ephakathi kweeseli zebhetri yakho kunye nenkqubo yakho yonke. Yenza izinto ezintathu:
- Ijonga iseli nganye nganye ngokwahlukeneyo — ilandelela i-voltage, ubushushu, kunye nemeko yetshaja ngexesha langempela.
- Ikhusela iphakheji — iyayicima itshaja okanye ikhuphe xa iseli iphuma ngaphandle kwefestile yayo yokusebenza ekhuselekileyo.
- Ilinganisa iiseli — ilinganisa inqanaba lokutshaja kuzo zonke iiseli ezikwiphakheji ukuze iseli ebuthathaka ingatsali yonke inkqubo.
Ngaphandle kwe-BMS, iiseli nganye ziyahlukana ngokuhamba kwexesha. Iseli etshaja ngokukhawuleza iya kufikelela kumda wayo we-over-voltage kuqala kwaye ivale amandla asetyenziswa yiphakheji yonke. Le ikhupha ngokukhawuleza iya kwehla ngaphantsi komda wayo okhuselekileyo kwaye iguge ngesantya esikhawulezileyo. I-BMS echazwe ngokufanelekileyo ithintela zombini ezi zinto.
I-LiFePO4 BMS: Indlela yokukhetha eyiyoInkqubo yoLawulo lweBhetrikwiPhekhi Yakho
Ukukhetha i-BMS engalunganga yenye yezona zinto zixhaphakileyo zokungasebenzi kakuhle kwangethuba kwiipakethe zebhetri zeLiFePO4 — kwaye yenye yezona ngxaki zilula ukuziphepha. Esi sikhokelo sikubonisa kanye oko kwenziwa yiLiFePO4 BMS, iinkcukacha ezibalulekileyo kwisicelo sakho, kunye nendlela yokuphepha iimpazamo zokufakela ezithumela uninzi lwamatikiti enkxaso kuthi.
Imisebenzi yoKhuseleko oluPhambili — Oko kwenziwa yilowo nalowo
Yonke i-LiFePO4 BMS ethembekileyo igubungela ezi ngqimba zintandathu zokhuseleko njengomgangatho. Ukuba i-BMS oyivavanyayo ayikho nanye kuzo, qhubeka.
| Ukhuseleko | Yintoni Ebangela Oku | Isizathu Sokuba Kubalulekile |
| Ukhuseleko lweVoltage engaphezulu (OVP) | I-voltage yeseli inyuka ngaphezulu kwe-~3.65 V ngexesha lokutshaja | Ithintela ukutshaja kakhulu, ukuqhekeka kwe-electrolyte, kunye nokuphela komthamo |
| Ukhuseleko olungaphantsi kweVoltage (UVP) | I-voltage yeseli iwela ngaphantsi kwe-~2.50 V ngexesha lokukhupha | Ithintela ukukhupha okunzulu okubangela umonakalo ongenakulungiseka kwiiseli |
| Ukhuseleko olugqithisileyo (OCP) | Umsinga wokukhupha udlula umda olinganiselweyo | Ikhusela ii-FET, iibhasi, kunye nee-cell tabs kumonakalo wobushushu |
| Ukhuseleko lweSijikelezo esifutshane (SCP) | Kufunyanwa i-spike yamandla ngequbuliso (impendulo ye-microsecond) | Icima ipakethi ngaphambi kokuba ingxaki enkulu ibangele umlilo okanye umoya ophumayo |
| Ukhuseleko lobushushu obugqithisileyo (OTP) | Ubushushu beseli okanye beMOSFET budlula umda | Iyayeka ukutshaja okanye ukukhupha ngaphambi kokuba ubushushu bubangele ukuwohloka ngokukhawuleza |
| Ukulinganisela iiSeli | Ukusasazeka kwevolthi kufunyenwe phakathi kweeseli | Ilinganisa i-state-of-charge ukuze umthamo wepakethi epheleleyo usetyenziswe |
Qaphela: Imida echanekileyo ye-trigger (umz., i-3.65 V ye-OVP) icwangciswa ngexesha lokulinganiswa kwe-BMS kwaye iyahluka phakathi kweemodeli. Soloko ujonga iphepha ledatha le-SKU ethile oyi-odolayo.

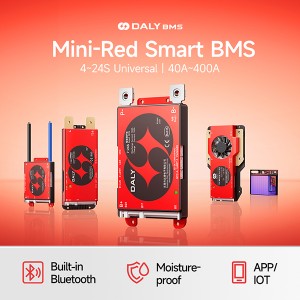

Uluhlu lweeMveliso zeDaly BMS LiFePO4 — Isishwankathelo soBugcisa
Usapho lweDaly BMS LiFePO4 lugubungela uluhlu olubanzi lweenkqubo, ukusuka kwiipakethe ze-DIY ezi-12V ezincinci ukuya kwiinkqubo zokugcina amandla ze-48V+. Iiparameter eziphambili ngokweqela lemodeli:
| Ipharamitha | Uluhlu / Iinketho | Amanqaku |
| Ikhemistri yebhetri | I-LiFePO4 (LFP) | Ukulinganiswa kwe-voltage ye-LFP ezinikeleyo; iimodeli ezahlukeneyo ze-Li-ion / LTO |
| Uthotho lweBalo lweeSeli (S) | 4S · 8S · 12S · 16S · 20S · 24S | Izigqubuthelo ze-12V · 24V · 36V · 48V · 60V · 72V ii-voltages zepakethi ezimiselweyo |
| Uvavanyo lwangoku oluqhubekayo | 20A — 200A (kuxhomekeke kwimodeli) | Soloko ubeka ubungakanani obuyi-≥110% yomthwalo wakho oqhubekayo ophezulu |
| Indlela Yokulinganisela | Ukulinganisela okungasebenziyo (okuqhelekileyo) / Ukulinganisela okusebenzayo (ukuphucula) | Ukulinganisela okusebenzayo kukhethwa kwiipakethi ezingaphezulu kwe-100Ah okanye ukujikeleza rhoqo okungaphelelanga |
| Unxibelelwano lweNdawo yoNxibelelwano | I-UART · RS485 · I-Bluetooth (iimodeli ze-Smart BMS) | Iyadingeka ukuba i-inverter/ishaja yakho ifuna idatha ye-SOC okanye yeseli ngexesha langempela |
| Iindlela Zokuhlala | I-Standard / Conformal coating / IP67 xa iceliwe | Iindawo zangaphandle, zaselwandle, kunye nezoshishino zifuna amanqaku aphezulu e-IP |
| I-OEM / i-ODM | Iyafumaneka | I-firmware eyenziwe ngokwezifiso, ukulebhelisha, ukwakhiwa, kunye nokuhlanganiswa kweprotocol kuyaxhaswa |
Ukuze ufumane amaphepha edatha athile ahambelana nemodeli kunye namaxwebhu eenkcukacha zangoku, ndwendwela i-dalybms.com okanye unxibelelane neqela lethu lobuchwephesha ngokuthe ngqo.
Indlela yokukhetha i-LiFePO4 BMS efanelekileyo — Inkqubo enamanyathelo ama-5
Sebenza ngezi nyathelo zintlanu ngokulandelelana kwazo. Ukutsiba naliphi na kuzo yindlela okwenzeka ngayo ukungangqinelani.
Inyathelo 1 — Bala iiSeli zakho ngothotho (Ubalo luka-S)
Inani le-S limisela imodeli ye-BMS. Iseli nganye ye-LiFePO4 inevolthi eqhelekileyo ye-3.2 V. Zidibanise:
- 4S = 12.8 V eqhelekileyo → inkqubo eqhelekileyo ye-12V
- 8S = 25.6 V eqhelekileyo → inkqubo eqhelekileyo ye-24V
- 16S = 51.2 V eqhelekileyo → inkqubo eqhelekileyo ye-48V
- 24S = 76.8 V eqhelekileyo → inkqubo eqhelekileyo ye-72V
I-BMS elinganiswe ngenani le-S elingalunganga iya kusilela ukufunda ii-voltage zeseli ngokuchanekileyo okanye isebenzise imida yokhuseleko engalunganga. Akukho ndlela yokusombulula ingxaki — inani le-S kufuneka lifane ngokuchanekileyo.
Inyathelo lesi-2 — Chonga iMfuno yakho yangoku eqhubekayo
Yongeza i-nameplate current yazo zonke imithwalo ezinokusebenza ngexesha elinye. Faka umda we-10–20% phezulu ukuze unyuke. Khetha umlinganiselo olandelayo wamandla e-BMS okhoyo ngaphezu kwelo nani lipheleleyo. Umzekelo: i-inverter ye-2,000W kwinkqubo ye-24V itsala malunga ne-83A xa umthwalo ugcwele — i-100A BMS lolona khetho luchanekileyo.
Musa ukwenza ubungakanani bomthwalo oqhelekileyo. I-BMS kufuneka ithwale umthwalo ombi ngaxeshanye ngaphandle kokukhubeka.
Inyathelo lesi-3 — Khetha phakathi kokulinganisela okungasebenziyo nokusebenzayo
Ukulinganisela okungasebenziyo kutshisa umbane ogqithisileyo kwiiseli ze-SOC eziphezulu nge-resistor. Iyasebenza, kodwa icotha kwaye ivelisa ubushushu. Ukulinganisela okusebenzayo kudlulisa umbane ukusuka kwiiseli ze-SOC eziphezulu ukuya kwiiseli ze-SOC ezisezantsi kusetyenziswa ii-inductors okanye ii-capacitors - ngokukhawuleza, kusetyenziswa amandla amaninzi, kwaye kungcono kwiipakethi ezinkulu.
Ukuba ipakethi yakho ingaphezulu kwe-100Ah, ihlala ijikeleziswa kancinci (ukusetyenziswa kwelanga), okanye ikwindawo evalekileyo apho ubushushu buyingxaki, ukulinganisela okusebenzayo lolona tyalo-mali lungcono.
Inyathelo lesi-4 — Jonga ukuba loluphi unxibelelwano olufunekayo kwinkqubo yakho
Ukuba i-inverter yakho, isilawuli setshaja yelanga, okanye iqonga lokujonga lifuna idatha yebhetri yexesha langempela — imeko yetshaja, ii-voltage zeseli, ubushushu, iiflegi ze-alamu — udinga i-BMS enojongano oluhambelanayo. I-RS485 ngumgangatho weenkqubo ezininzi ze-inverter ze-48V. I-Bluetooth igubungela ukujonga okwenziwa ngokwakho kunye neselfowuni. Ezinye ii-inverter zifuna ibhasi ye-CAN okanye iprotokholi eyimfihlo. Qinisekisa ukuhambelana ngaphambi koku-odola.
Inyathelo lesi-5 — Qinisekisa iNqanaba lokuSingqongileyo
I-BMS efakwe ngaphakathi kwindawo eyomileyo ayifuni ndlu ikhethekileyo. I-BMS ekwisikhephe, kwikhabhathi yangaphandle, okanye kwindawo yenjini ifuna ubuncinci uboya obufanayo, kwaye kungcono ukuba ibe nendlu enexabiso le-IP67. Ukungena komswakama yeyona nto ibangela ukungaphumeleli kwe-BMS kwiindawo zangaphandle nezaselwandle.
